CNC Roll Lathe
R25W & R50W
Why Hankook R Series?
- Reliability – 40 years of design and manufacturing experience for Large horizontal lathe
- Many references – Approx. 40 sets of R series machine production and delivery
- Open design and no limitation – Adopt new high and latest technology. Now 300tons available to manufacture
MACHINE LAYOUT

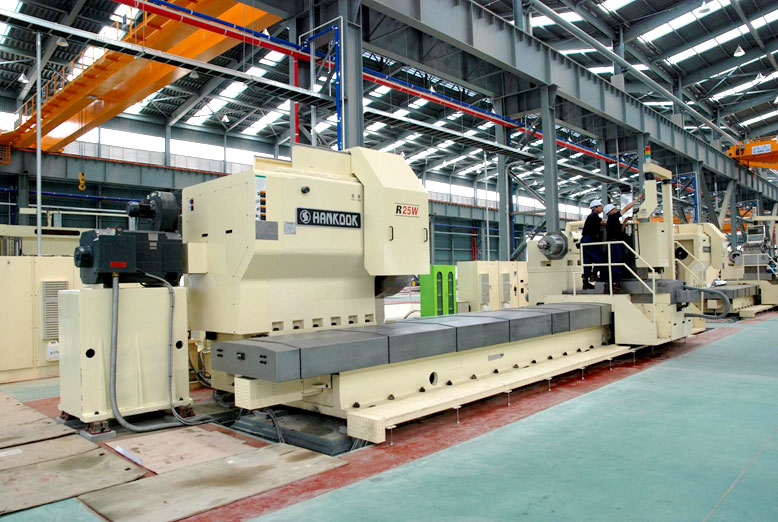

R25W

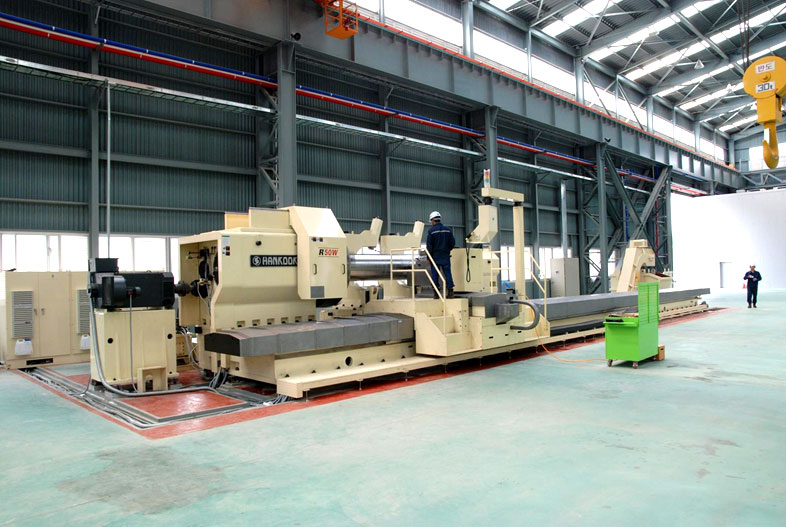

R50W
MAJOR ACCESSORY

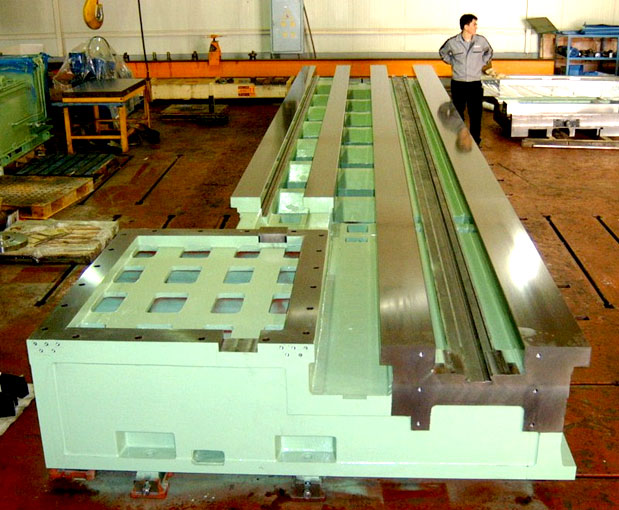

1. BED
Bed width 2000mm, One piece up to 10m length, Casting iron, Thick rib to prevent twisting and deformation.

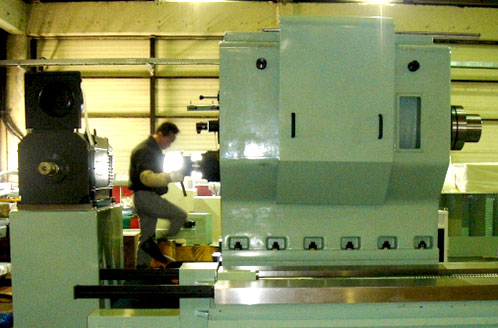

2. HEADSTOCK
Large diameter spindle and bearing to support 25tons and 50tons load capacity,
Direct connected motor to the spindle to enhance the force and torque.
Direct connected motor to the spindle to enhance the force and torque.
3. CARRIAGE
Large and wide carriage with hydrostatic slide way for stable and accurate support.

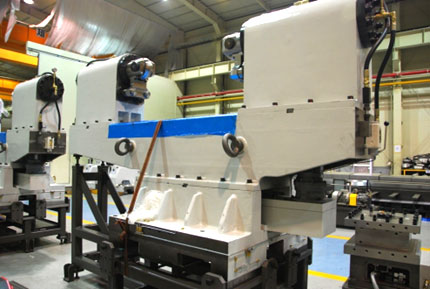

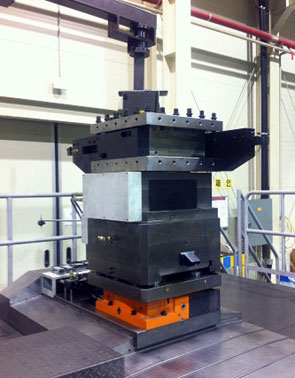

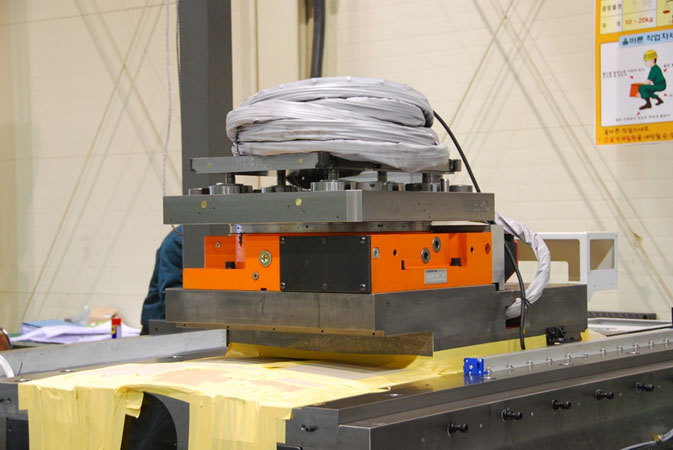

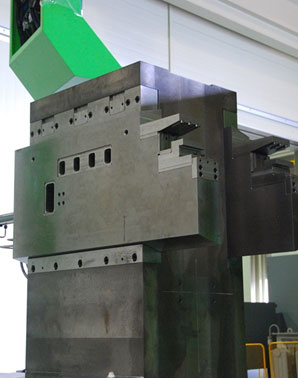

4. TOOL POST
H4 TURRET
V5 TURRET

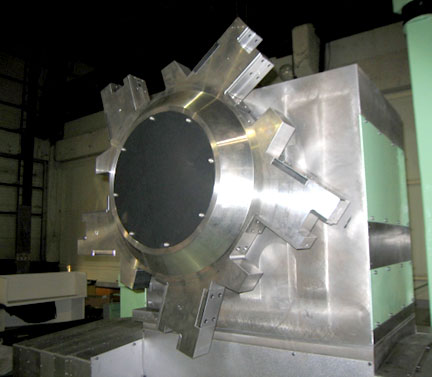

LAMELLA TYPE

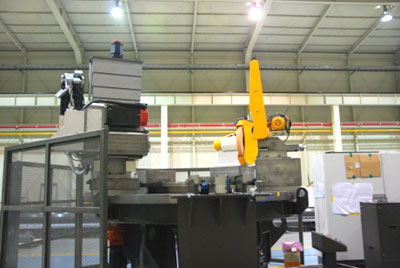

5. AAC (Automatic Attachment Changer)
Special application for many required attachment automatic exchange

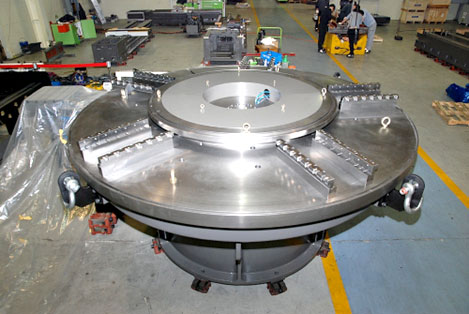

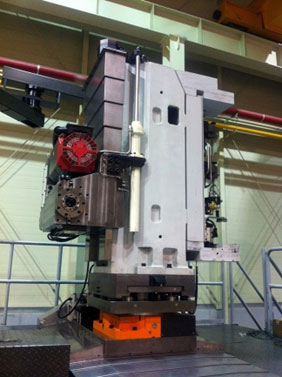

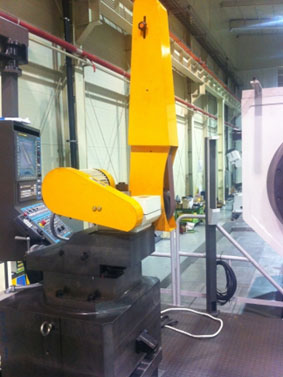

6. B-AXIS ROTARY TABLE
Available as option for many versatile application for milling attachment.
7. ATTACHMENT
H4 TURRET
MILLING ATTACHMENT

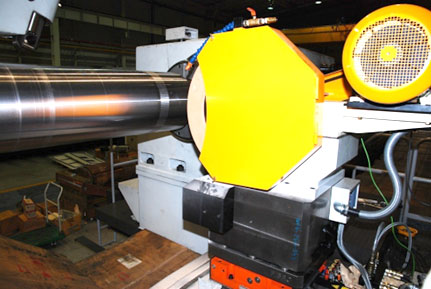

BELT GRINDER
WHEEL GRINDER
COLD ROLLING ATTACHMENT

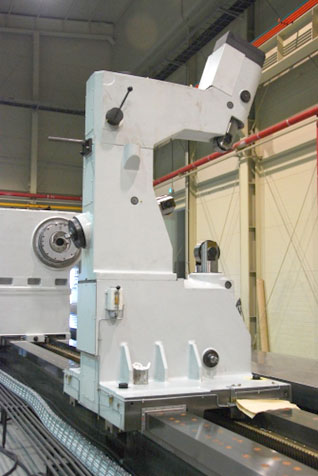

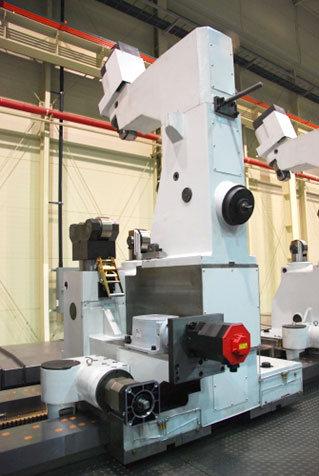

8. STEADY REST
MANUAL STEADY REST
AUTO POSITIONING REST

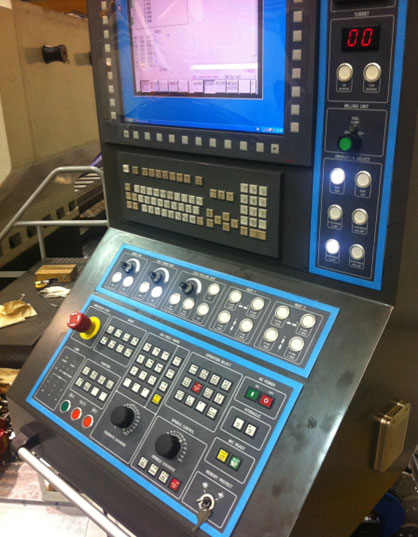

9. CONTROL PANEL
Adopt the latest and updated Fanuc controller system 32i model.
Large LCD screen.
Fast and easy data transfer method such as USB, Fast Ethernet etc is available as option.
Large LCD screen.
Fast and easy data transfer method such as USB, Fast Ethernet etc is available as option.
