MC-Horizontal
NHP Series
Description

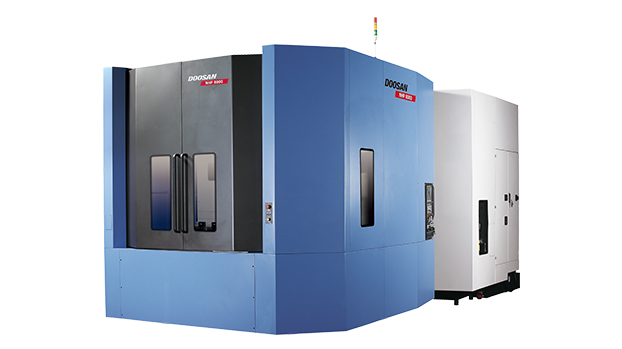

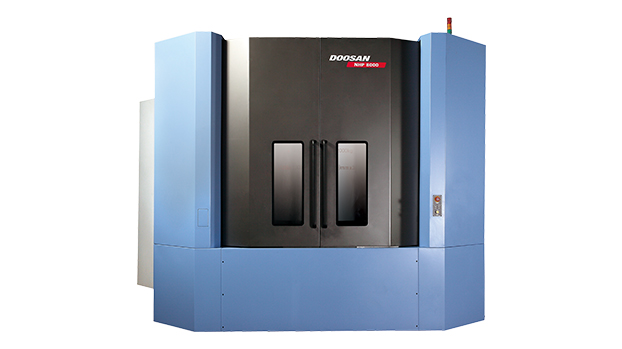

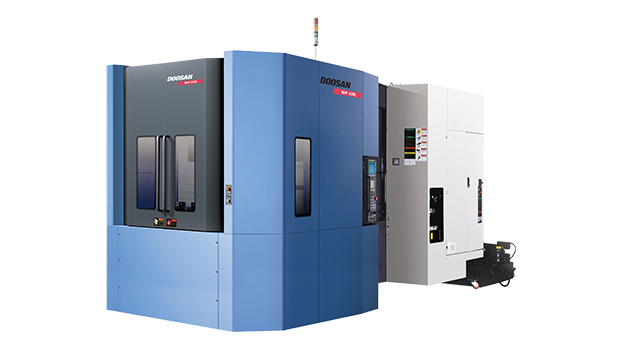

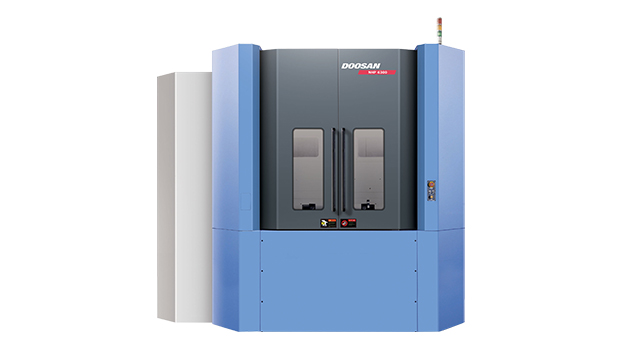

The NHP 5500 is designed for heavy cutting, long‐term high accuracy, and superior surface
finishes. Classic manufacturing methods and ultra rigid construction are combined with
advanced technological features to provide exceptional value.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | NHP 5500 |
|---|---|---|
| Travel Distance X-axis | mm (inch) | 800 (31.5) |
| Travel Distance Y-axis | mm (inch) | 750 (29.5) |
| Travel Distance Z-axis | mm (inch) | 850 (33.5) |
| Rapid Traverse X-axi | m/min (IPM) | 60 (2362) |
| Rapid Traverse Y-axis | m/min (IPM) | 60 (2362) |
| Rapid Traverse Z-axis | m/min (IPM) | 60 (2362) |
| Table Size | mmxmm (inchxinch) | 500 x 500 (19.685 x 19.685) |
| Maximum Load | kg (lbs) | 800 (1763) |
| Spindle Speed | r/min | 10000 |
| Tool Shank | - | CAT 50 |
| Tool Change Time (TTT) | sec. | 2 |
| Tool Storage Capacity | std. (opt.) | 90 (60, 120 / 150) |
