MC-Horizontal
NHM Series
Description

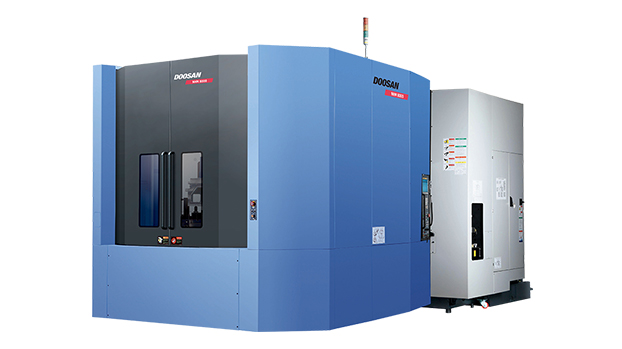

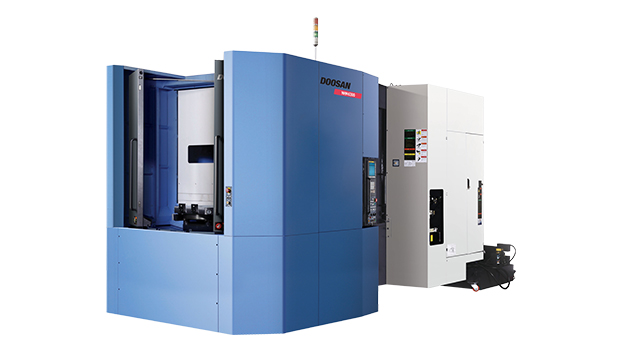

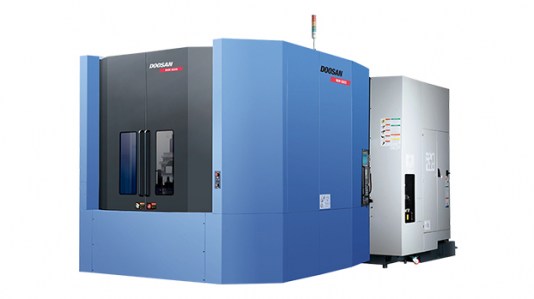

The NHM 5000 is designed for heavy cutting, long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | NHM 5000 |
|---|---|---|
| Travel Distance X-axis | mm (inch) | 800 (31.5) |
| Travel Distance Y-axis | mm (inch) | 700 (27.5) |
| Travel Distance Z-axis | mm (inch) | 850 (33.4) |
| Rapid Traverse X-axi | m/min (IPM) | 36 (1417) |
| Rapid Traverse Y-axis | m/min (IPM) | 36 (1417) |
| Rapid Traverse Z-axis | m/min (IPM) | 36 (1417) |
| Table Size | mmxmm (inchxinch) | 500 x 500 (19.685 x 19.685) |
| Maximum Load | kg (lbs) | 800 (1763) |
| Spindle Speed | r/min | 25 - 6000 |
| Tool Shank | - | CAT 50 |
| Tool Change Time (TTT) | sec. | 2 |
| Tool Storage Capacity | std. (opt.) | 90 (60 / 120 / 150) |
