MC-Horizontal
HP II Series
Description

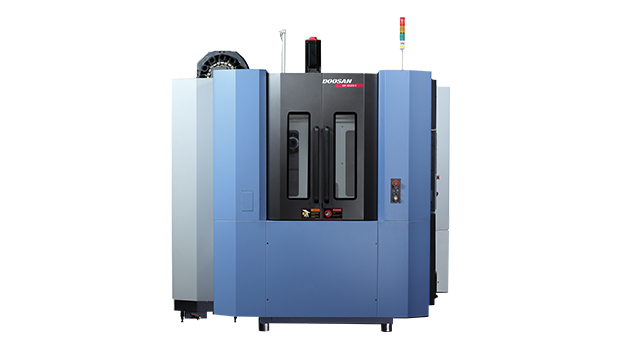

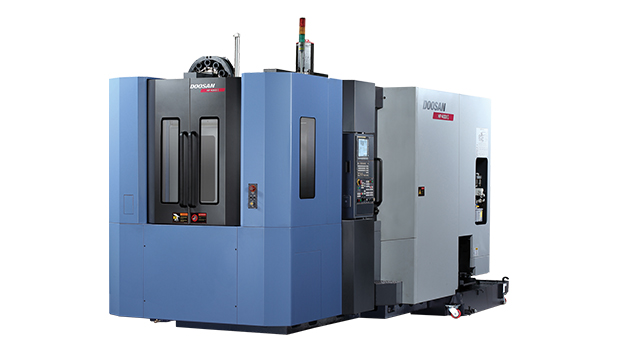

The HP 4000‐II is designed for heavy cutting, long‐term high accuracy, and superior surface
finishes. Classic manufacturing methods and ultra rigid construction are combined with
advanced technological features to provide exceptional value.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | HP 4000 II |
|---|---|---|
| Travel Distance X-axis | mm (inch) | 600 (23.6) |
| Travel Distance Y-axis | mm (inch) | 560 (22.0) |
| Travel Distance Z-axis | mm (inch) | 600 (23.6) |
| Rapid Traverse X-axi | m/min (IPM) | 60 (2362) |
| Rapid Traverse Y-axis | m/min (IPM) | 60 (2362) |
| Rapid Traverse Z-axis | m/min (IPM) | 60 (2362) |
| Table Size | mmxmm (inchxinch) | 400 x 400 (15.75 x 15.75) |
| Maximum Load | kg (lbs) | 400 (880) |
| Spindle Speed | r/min | 14000 |
| Tool Shank | - | CAT 40 |
| Tool Change Time (TTT) | sec. | 1 |
| Tool Storage Capacity | std. (opt.) | 60 (116 / 170 / 262) |
