MC-Horizontal
HM Series
Description

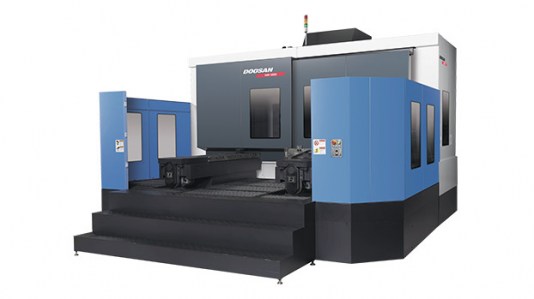

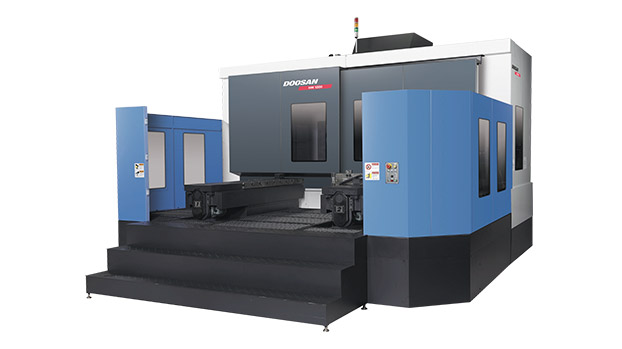

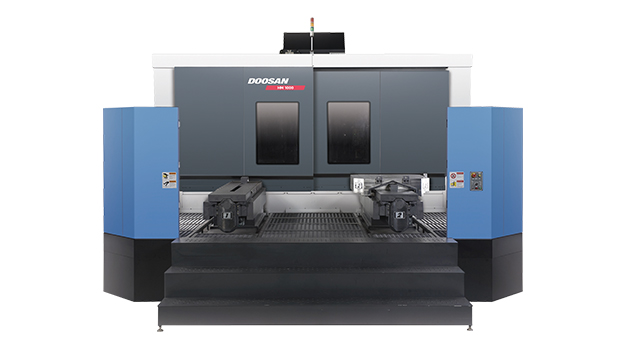

The HM 1000 is designed for heavy cutting, long-term high accuracy, and superior surface finishes. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | HM 1000 |
|---|---|---|
| Travel Distance X-axis | mm (inch) | 2100 (82.77) |
| Travel Distance Y-axis | mm (inch) | 1250 (49.2) |
| Travel Distance Z-axis | mm (inch) | 1250 (49.2) |
| Rapid Traverse X-axi | m/min (IPM) | 24 (945) |
| Rapid Traverse Y-axis | m/min (IPM) | 24 (945) |
| Rapid Traverse Z-axis | m/min (IPM) | 24 (945) |
| Table Size | mmxmm (inchxinch) | 1000 x 1000 (39.4 x 39.4) |
| Maximum Load | kg (lbs) | 3000 (6600) |
| Spindle Speed | r/min | 60 - 6000 |
| Tool Shank | - | CAT 50 |
| Tool Change Time (TTT) | sec. | 8.5 |
| Tool Storage Capacity | std. (opt.) | 120 (90 / 196) |
