Large Size

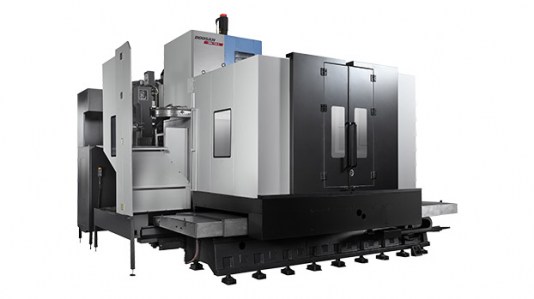

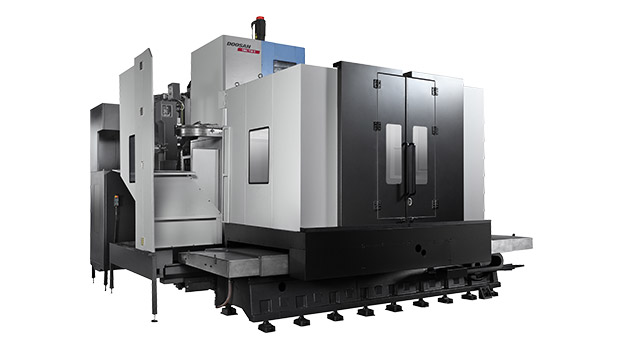

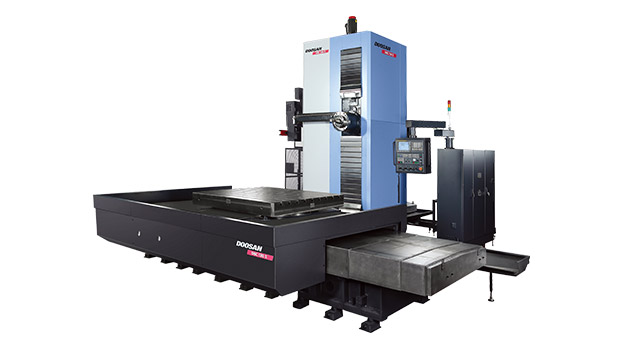

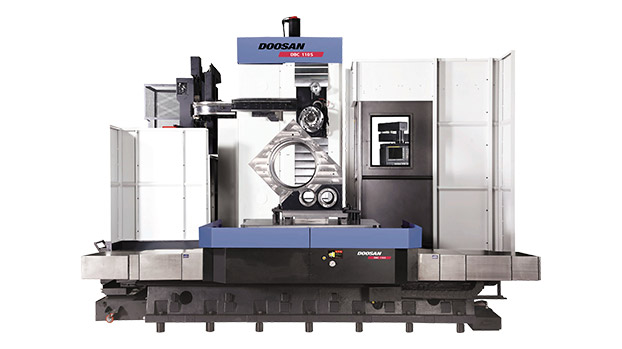

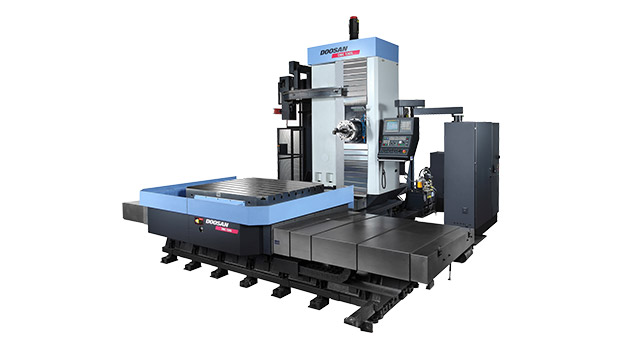

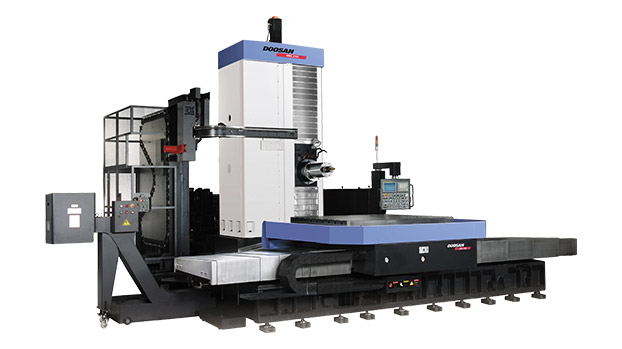

DBC Series
Description
Coming Soon
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | DBC 110S | DBC 130S | DBC 130SL |
|---|---|---|---|---|
| Spindle Or Quill Diameter | mm (inch) | 110 (4.33) | 130 (5.12) | 130 (5.12) |
| Table Size | mmxmm (inchxinch) | 1400 x 1600 (55.12 x 62.99) | 1400 x 1600 (55.12 x 62.99) | N/A |
| Spindle Speed | r/min | 3000 | 2500 | N/A |
| Max. Spindle Moter Power | kW (hp) | 26 (34.9) | 37 (49.6) | N/A |
| Travel Distance X-axis | mm (inch) | 2000 (78.74) | 2000 (78.74) | N/A |
| Travel Distance Y-axis | mm (inch) | 1500 (59.06) | 1500 (59.06) | N/A |
| Travel Distance Z-axis | mm (inch) | 1200 (47.24) | 1200 (47.24) | N/A |
| Travel Distance W-axis | mm (inch) | 500 (19.69) | 600 (23.62) | N/A |
| Tool Storage Capacity (Opt.) | ea | 40, 60, 90 SELECT | 40, 60, 90 SELECT | N/A |
| NC System | - | FANUC | FANUC | N/A |
