5-Axis
DNM Series

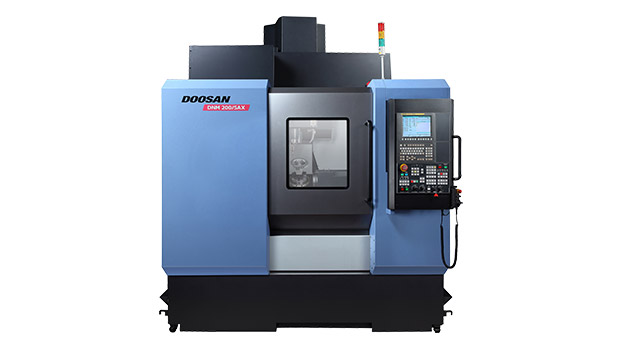

The DNM 200 5 axis, equipped with the FANUC F0i-MD control, is designed for a wide range of applications, especially prismatic type work pieces. It is capable of 4+1 axes simultaneous machining, greatly reducing the need for multiple setups and increasing the precision of the finished work piece. The powerful, 12,000 rpm high speed spindle provides superior performance in virtually any machining application.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | DNM 200/5AX |
|---|---|---|
| Travel Distance X-axis | mm (inch) | 400 (15.748) |
| Travel Distance Y-axis | mm (inch) | 435 (17.126) |
| Travel Distance Z-axis | mm (inch) | 500 (19.685) |
| Travel Distance A-axis | Deg. To Deg. | 30 / 120 |
| Travel Distance C-axis | Deg. | 360 |
| Rapid Traverse X-axis | m/min (IPM) | 36 (1417) |
| Rapid Traverse Y-axis | m/min (IPM) | 36 (1417) |
| Rapid Traverse Z-axis | m/min (IPM) | 30 (1181) |
| Table Loading Area | mm (inch) | 300 (11.811) |
| Maximum Load | kg (lbs) | 40 (88) |
| Spindle Speed | r/min | 12000 |
| Tool Shank | - | CAT 40 |
| Tool Storage Capacity | std. (opt.) | 30 / 40 |
