Vertical CNC Lathe
Puma VTS Series

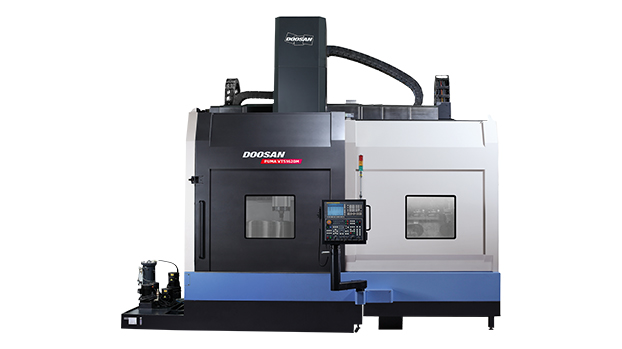

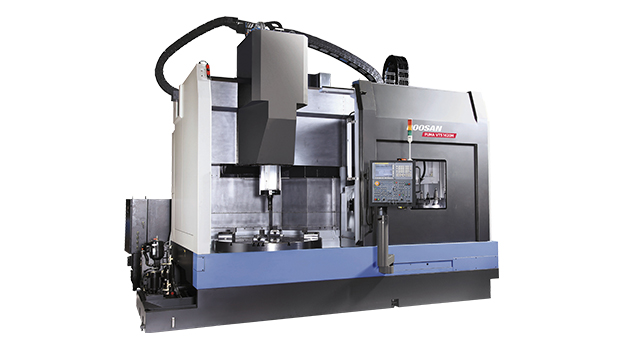

The PUMA VTS1214 series is a single spindle vertical turning center designed for large diameter parts requiring up to a 40” chuck (50” optional). The series is well suited to larger parts typical of aerospace, construction, wind turbine and oil and gas applications. The rigid design utilizes Meehanite® cast iron components and rigid box way construction.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | PUMA VTS1214 |
|---|---|---|
| Max. Turning Diameter | mm (inch) | 1350 (53.15) |
| Max. Turning Height | mm (inch) | 814 (32) |
| Table Spindle Speeds - Full Power | r/min | 250 / 630 |
| Travel Distance X-axis R / L from Center | mm (inch) | 1298 (51.1) / 152 (5.98) |
| Ram Guide Length Z-axis | mm (inch) | 800 (31.5) |
| Rapid Traverse X-axis | m/min (IPM) | 12 (472) |
| Rapid Traverse Z-axis | m/min (IPM) | 12 (472) |
| Number of Tools | std. (opt.) | 15 (24) |
