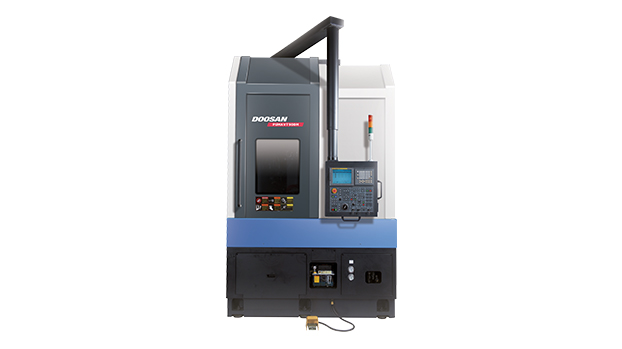

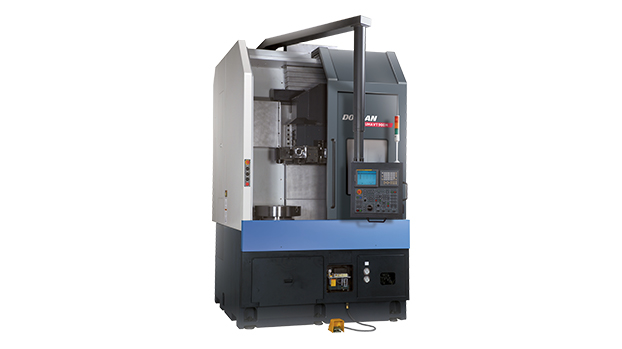

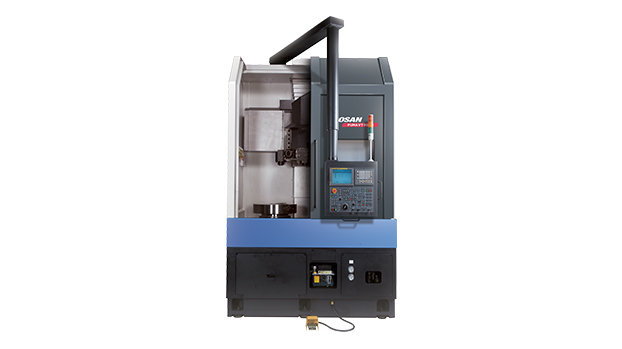

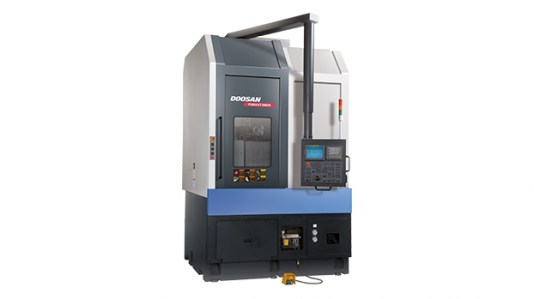

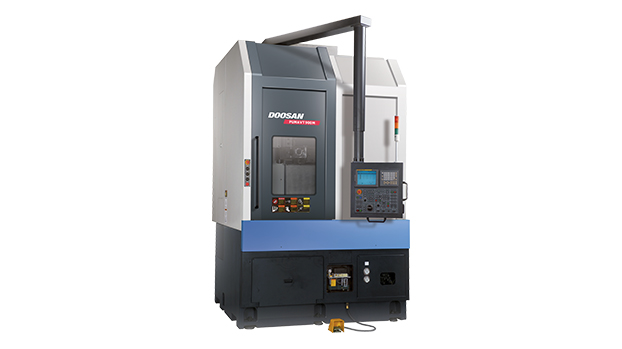

The PUMA VT1100 is a single spindle vertical turning center designed for large diameter parts requiring up to a 40” chuck. The vertical design facilitates loading of heavy work pieces, which helps to ensure higher chucking accuracy and allows for higher spindle speeds.
Main Features
- Vertical spindle to facilitate part loading
- 2 speed gearbox spindle 3 adjustable gibs per axis
- Hardened and ground solid box way construction
- Heavy duty spindle design
- Large diameter ball screws
- Tool monitoring system
- Programmable high - low chucking pressure
- Chuck clamp/unclamp confirmation proximity switches
- EZ Guide i conversational programming
Main Specifications
Sales Model | Unit | Puma VT1100 |
---|---|---|
Max. Turning Diameter | mm (inch) | 1100 (43.3) |
Max. Working Length (32" / 40") |
mm (inch) | 1000 (39.37) / 970 (38.2) |
Spindle Speed | r/min | 5 - 850 |
Travel Distance X-axis | mm (inch) | 580 (22.8) |
Travel Distance Z-axis | mm (inch) | 1000 (39.37) |
Rapid Traverse X-axis | m/min (IPM) | 20 (787) |
Rapid Traverse Z-axis | m/min (IPM) | 20 (787) |
Number of Tools | std. (opt.) | 12 |
Turning Tool Shank Size | mm (inch) | 32 (1.25) |
Boring Bar Diameter | mm (inch) | 80 (3.0) |
