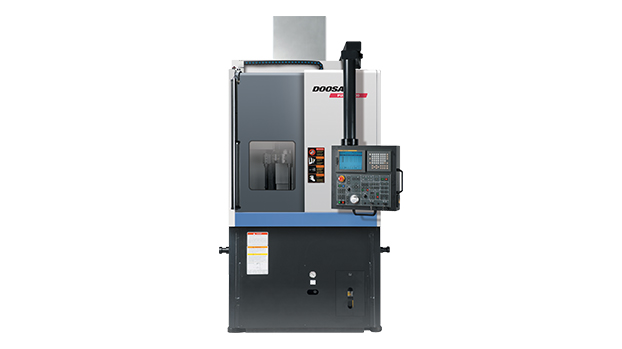

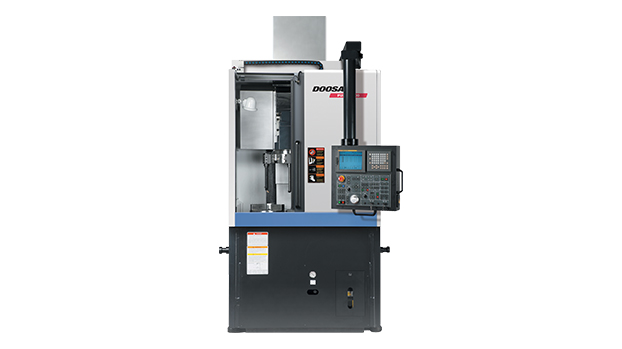

The PUMA V400 is designed for high accuracy and superior surface finishes in production environments. Exceptionally smooth cutting & powerful with a compact footprint, the vertical design facilitates easy loading of work pieces manually or via robot and ensures the highest degree of chucking
Main Features
- Vertical Design for easy loading
- Powerful high-torque spindle drive
- Hardened and ground solid box way construction
- High speed bi directional turret indexing
- Compact floor space
- Air curtain protection of spindle bearings
- Tool monitoring system
- Electronic ball screw protection
- Chuck clamp/unclamp confirmation proximity switches
- EZ Guide i conversational programming
Main Specifications
Sales Model | Unit | PUMA V400 | PUMA V400M |
---|---|---|---|
Max. Turning Diameter | mm (inch) | 496 (19.5) | 420 (16.5) |
Max. Turning Length | mm (inch) | 461 (18.1) | 400 (15.7) |
Spindle Speed | r/min | 3000 | 3000 |
Travel Distance X-axis | mm (inch) | 268 (10.55) | 268 (10.55) |
Travel Distance Z-axis | mm (inch) | 488 (19.2) | 488 (19.2) |
Rapid Traverse X-axis | m/min (IPM) | 20 (787) | 20 (787) |
Rapid Traverse Z-axis | m/min (IPM) | 20 (787) | 20 (787) |
Number of Tools | std. (opt.) | 12 (8) | 12 (BMT) |
OD tool holder shank size | mm (inch) | 25 (1.0) | 25 (1.0) |
ID tool max. shank diameter | mm (inch) | 50 (2.0) | 40 (1.5) |
