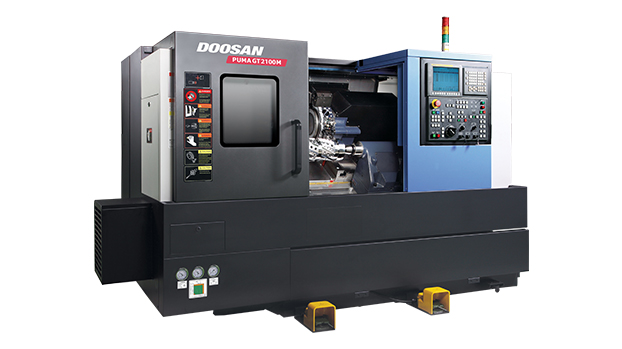

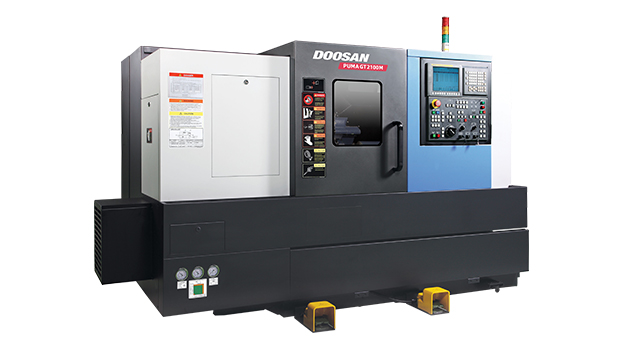

The PUMA GT2100 and GT2100B are designed for heavy and interrupted cutting, long-term high accuracy and superior surface finishes. High-speed turret indexing and fast rapid traverse rates minimize non-cutting time. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.
Main Features
- High torque motor
- Large bar capacity
- High speed spindle
- Heavy duty servo turret
- One-piece 30¡Æ torque-tube slant bed
- Solid box way construction
- Programmable tailstock body and quill
- Electric torque limiters
- Metered piston distributor lubrication
- EZ Guide i conversational programming
Main Specifications
Sales Model | Unit | Puma GT2100 | Puma GT2100B |
---|---|---|---|
Max. Turning Diameter | mm (inch) | 390 (15.35) | 390 (15.35) |
Max. Turning Length | mm (inch) | 562 (22.12) | 550 (21.6) |
Draw Tube I.D. | mm (inch) | 68 (2.68) | 82 (3.23) |
Spindle Speed | r/min | 45 - 4500 | 35 - 3500 |
Travel Distance X-axis / X2-axis | mm (inch) | 230 (9.05) | 230 (9.05) |
Travel Distance Z-axis / Z2-axis | mm (inch) | 580 (22.8) | 580 (22.8) |
Rapid Traverse X-axis | m/min (IPM) | 24 (945) | 24 (945) |
Rapid Traverse Z-axis | m/min (IPM) | 30 (1181) | 30 (1181) |
Number of Tools std. (opt.) |
Number of Tools | 12 | 12 |
Turning Tool Shank Size | mm (inch) | 25 (1.0) | 25 (1.0) |
Boring Bar Diameter main / sub | mm (inch) | 40 (1.5) | 40 (1.5) |
