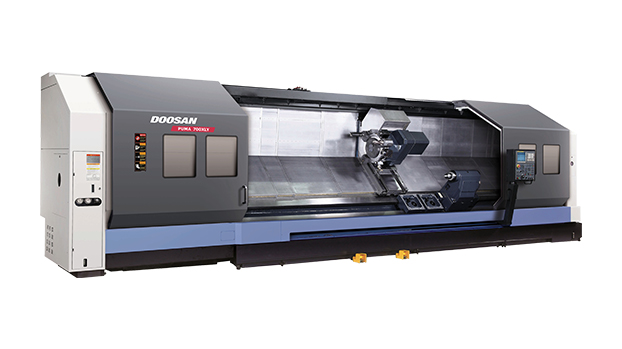

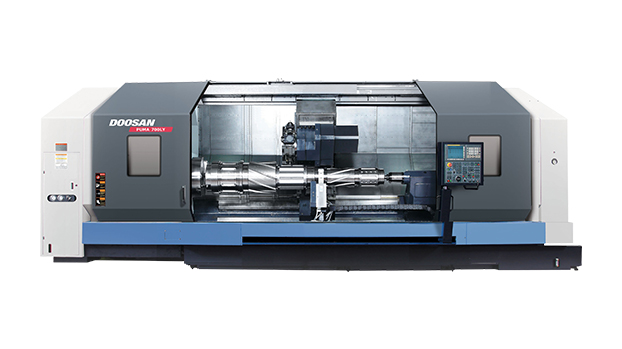

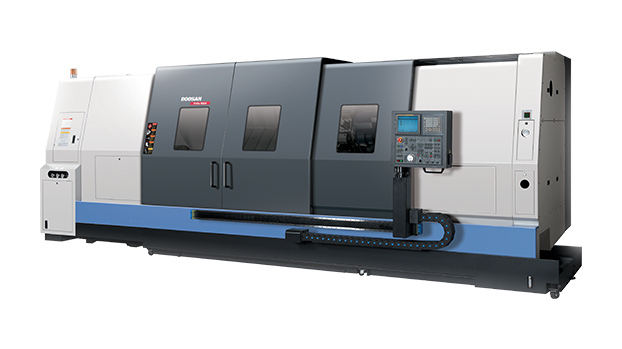

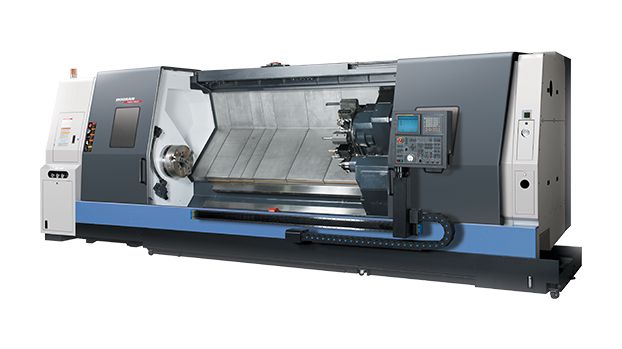

Horizontal CNC Lathe
Puma 700/800 Series
The Puma 700 and 800 series turning centers are designed for heavy and interrupted cutting,
long‐term high accuracy, and superior surface finishes. High speed turret indexing and fast
rapid traverse rates minimize non‐cutting time. Classic manufacturing methods and ultra
rigid construction are
combined with advanced
technological features to
provide exceptional value.
Main Features
- Powerful (45 kW) 60 Hp spindle motor
- Heavy duty turret with (400mm) 15.8" coupling
- One-piece 45 degree torque-tube slant bed
- Double anchor pretensioned X and Z axis ball screws
- Up to (47,953 N) 10,780 pounds of Z axis thrust
- Large (900mm) 35.4" turning diameter
- EZ Guide i conversational programming
Main Specifications
| Sales Model | Unit | Puma 700/800 | Puma 700L/800L |
|---|---|---|---|
| Max. Turning Diameter | mm (inch) | 900 (35.4) | 900 (35.4) |
| Max. Turning Length | mm (inch) | 1600 (63.0) | 3200 (126.0) |
| Distance btwn centers | mm (inch) | 1950 (76.8) | 3600 (141.7) |
| Draw Tube I.D. | mm (inch) | 166.5 (6.55) | n/a |
| Spindle Speed | r/min | 3 - 1500 | 3 - 750 |
| Travel Distance X-axis / X2-axis | mm (inch) | 470 (18.5) | 470 (18.5) |
| Travel Distance Z-axis / Z2-axis | mm (inch) | 1650 (65.0) | 3235 (127.3) |
| Rapid Traverse X-axis | m/min (IPM) | 12 (472) | 12 (472) |
| Rapid Traverse Z-axis | m/min (IPM) | 16 (630) | 10 (394) |
| Number of Tools std. (opt.) |
Number of Tools | 12 | 12 |
| Turning Tool Shank Size | mm (inch) | 32 (1.25) | 32 (1.25) |
| Boring Bar Diameter main / sub | mm (inch) | 80 (3.0) | 80 (3.0) |
