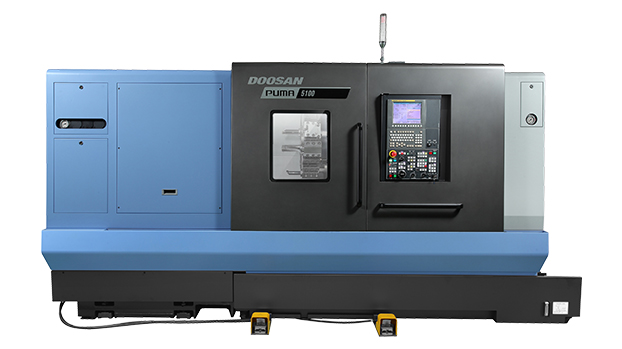

Horizontal CNC Lathe
Puma 5100 Series

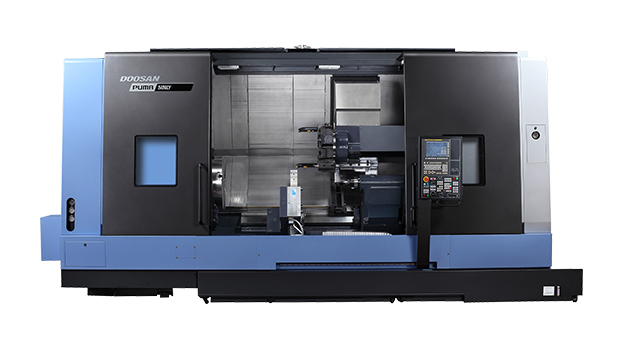

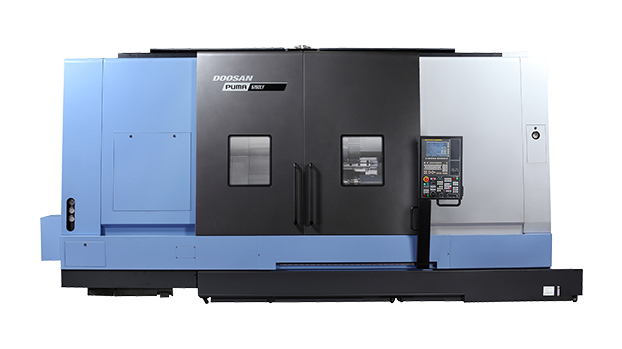

The Puma 5100LY turning center is designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. The mill-drill capability with Y-axis reduces the need for secondary machining on other machines, helping to eliminate additional machine set-ups and handling costs. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.
Main Features
- High speed 1,500 RPM spindle
- Powerful (45kW) 60 HP high-torque spindle drive
- (880mm) 34.6” swing over the bed
- (2,957 N.m) 2,181 ft-lbs of spindle torque
- BH9Large (165.5mm) 6.5” bar capacity
Main Specifications
| Sales Model | Unit | Puma 5100LYB |
|---|---|---|
| Max. Turning Diameter | mm (inch) | 550 (21.6) |
| Max. Turning Length | mm (inch) | 2020 (79.5) |
| Draw Tube I.D. | mm (inch) | 166.5 (6.55) |
| Spindle Speed | r/min | 1500 |
| Travel Distance X-axis / X2-axis | mm (inch) | 355 (13.97) |
| Travel Distance Z-axis / Z2-axis | mm (inch) | 2100 (82.68) |
| Rapid Traverse X-axis | m/min (IPM) | 20 (790) |
| Rapid Traverse Z-axis | m/min (IPM) | 18 (710) |
| Number of Tools std. (opt.) |
Number of Tools | 12 |
| Turning Tool Shank Size | mm (inch) | 25 (1.0) |
| Boring Bar Diameter main / sub | mm (inch) | 60 (2.5) |
| Rapid Traverse C-axis | r/min | 100 |
| Braking Torque C-axis | Nm (ft-lbs.) | 1131 (834) |
| Travel Distance Y-axis | mm (inch) | 150 (5.9) |
| Rapid Traverse Y-axis | m/min (IPM) | 10 (394) |
| Swing Over Bed | mm (inch) | 880 (34.64) |
| Swing Over Carriage | mm (inch) | 817 (32.16) |
| Min. Porgrammable Angle C-axis | Deg. | 0.001 |
| Positioning Accuracy C-axis | Deg. | 0.0167 |
| Rotating Tool Speed | r/min | 3000 |
