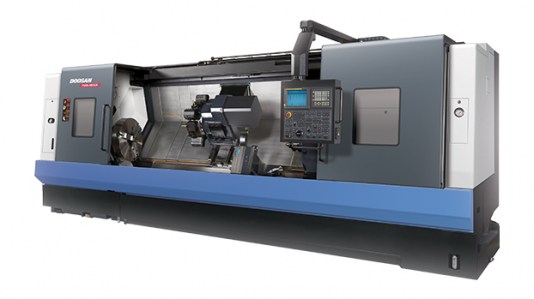

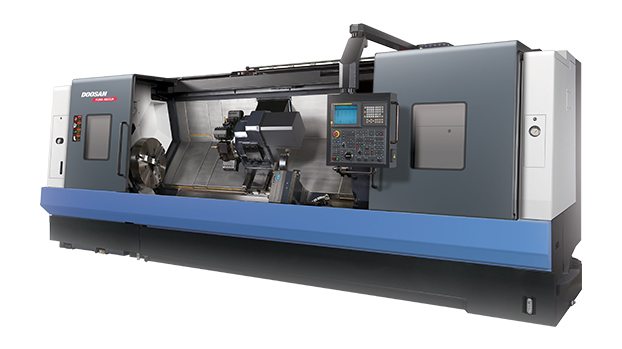

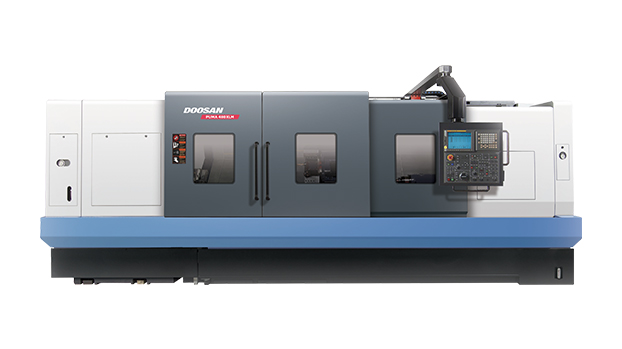

Horizontal CNC Lathe

Puma 480 Series

Print
Description

The Puma 480 series turning centers are designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.
Main Features
- High speed spindle
- Large bar capacity
- Isolated 2-speed gearbox
- Heavy duty servo turret with Curvic coupling
- One-piece 45¡Æ torque-tube slant bed
- Solid box way construction
- Heavy duty turret with built-in center
- Large turning diatmeter
- Metered piston distributor lubrication
- EZ Guide i conversational programming

 Main Specifications

Sales Model Unit PUMA 480 Puma 480L
Max. Turning Diameter mm (inch) 650 (25.6) 650 (25.6)
Max. Turning Length mm (inch) 992 (40.0) 2040 (80.4)
Distance btwn centers mm (inch) 1135 (44.7) 2185 (86.0)
Draw Tube I.D. mm (inch) 166.5 (6.55) 166.5 (6.55)
Spindle Speed r/min 15 - 1500 15 - 1500
Travel Distance X-axis / X2-axis mm (inch) 362 (14.3) 362 (14.3)
Travel Distance Z-axis / Z2-axis mm (inch) 1105 (43.5) 2155 (84.8)
Rapid Traverse X-axis m/min (IPM) 16 (630) 16 (630)
Rapid Traverse Z-axis m/min (IPM) 20 (790) 18 (710)
Number of Tools std.
(opt.)
Number of Tools 12 12
Turning Tool Shank Size mm (inch) 32 (1.25) 32 (1.25)
Boring Bar Diameter main / sub mm (inch) 80 (3.0) 80 (3.0)
