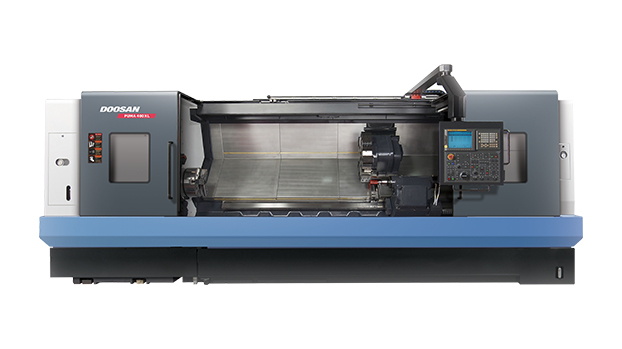

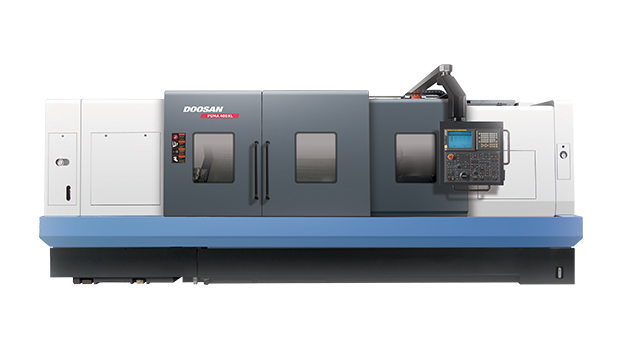

Horizontal CNC Lathe

Puma 400 Series

Print
Description

 The Puma 400 series turning centers are designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. Classic manufacturing methods and ultra rigid construction are combined with advanced technological features to provide exceptional value.

Main Features
- High speed spindle
- Large bar capacity
- Isolated 2-speed gearbox
- Heavy duty servo turret with Curvic coupling
- One-piece 45¡Æ torque-tube slant bed
- Solid box way construction
- Programmable tailstock body and quill
- Large turning diatmeter
- Metered piston distributor lubrication
- EZ Guide i conversational programming

 Main Specifications

Sales Model Unit Puma 400B Puma 400[LB]
Max. Turning Diameter mm (inch) 550 (21.7) 550 (21.7)
Max. Turning Length mm (inch) 1043 (41.1) 2093 (82.4)
Distance btwn centers mm (inch) 1135 (44.7) 2185 (86.0)
Draw Tube I.D. mm (inch) 117.5 (4.62) 117.5 (4.62)
Spindle Speed r/min 20 - 2000 20 - 2000
Travel Distance X-axis / X2-axis mm (inch) 362 (14.3) 362 (14.30
Travel Distance Z-axis / Z2-axis mm (inch) 1105 (43.5) 2155 (84.8)
Rapid Traverse X-axis m/min (IPM) 16 (630) 16 (630)
Rapid Traverse Z-axis m/min (IPM) 20 (790) 18 (710)
Number of Tools std.
(opt.)
Number of Tools 12 12
Turning Tool Shank Size mm (inch) 32 (1.25) 32 (1.25)
Boring Bar Diameter main / sub mm (inch) 60 (2.5) 60 (2.5)
