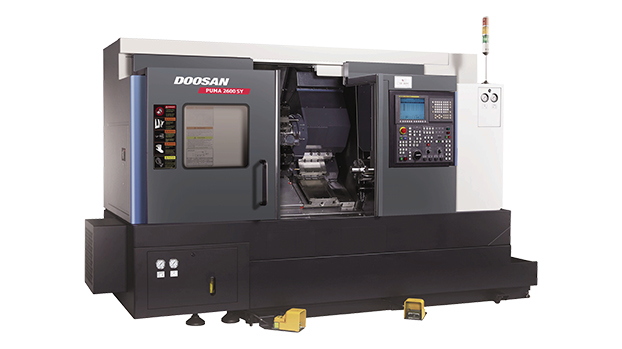

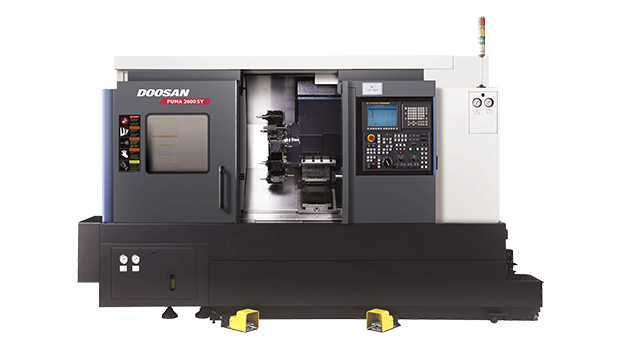

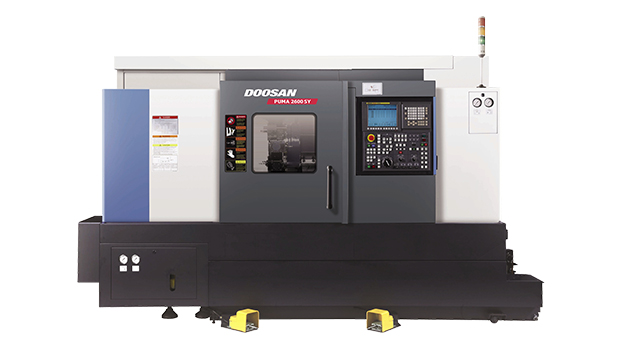

Horizontal CNC Lathe
Puma 2600 Series
The PUMA 2600 series turning centers are designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. Available mill-drill capability and Y-axis with a programmable tailstock, greatly reduce the need for secondary operations, eliminating additional set-up and handling costs.
Main Features
- High speed spindle
- Milling, drilling and tapping capabilities
- Heavy duty 12 station turret with 0.15 sec index time
- Turcite B anti-friction mating way surfaces
- Tool monitoring system - wear and breakage detection
- Electric torque limiter protection
- One-piece 30¡Æ slant bed
- Solid box way construction
- Tool setter
- EZ Guide i conversational programming
Main Specifications
| Sales Model | Unit | Puma 2600 | Puma 2600M | Puma 2600Y |
|---|---|---|---|---|
| Max. Turning Diameter | mm (inch) | 480 (18.9) | 376 (14.8) | 376 (14.8) |
| Max. Turning Length | mm (inch) | 760 (29.9) | 760 (29.9) | 760 (29.9) |
| Draw Tube I.D. | mm (inch) | 77 (3.03) | 77 (3.03) | 77 (3.03) |
| Spindle Speed | r/min | 45 - 3500 | 3500 | 3500 |
| Travel Distance X-axis / X2-axis | mm (inch) | 260 (10.2) | 260 (10.2) | 260 (10.2) |
| Travel Distance Z-axis / Z2-axis | mm (inch) | 830 (32.67) | 830 (32.67) | 830 (32.67) |
| Rapid Traverse X-axis | m/min (IPM) | 30 (1181) | 30 (1181) | 30 (1181) |
| Rapid Traverse Z-axis | m/min (IPM) | 30 (1181) | 30 (1181) | 30 (1181) |
| Number of Tools std. (opt.) | Number of Tools | 12 | 12 | 12 |
| Number of index positions | std. | 12 | 12 (24) | 12 (24) |
| Turning Tool Shank Size | mm (inch) | 25 (1.0) | 25 (1.0) (.75 opt.) | 25 (1.0) (.75 opt.) |
| Boring Bar Diameter main / sub | mm (inch) | 50 (2.0) | 50 (2.0) | 50 (2.0) |
| Rapid Traverse C-axis | r/min | - | 400 | 400 |
| Travel Distance Y-axis | mm (inch) | - | - | 105 (4.13) |
| Rapid Traverse Y-axis | m/min (IPM) | - | - | 10 (394) |
| Min. Porgrammable Angle C-axis | Deg. | - | 0.001 | 0.001 |
| Angle of Slant Bed | Deg. | 30 | 30 | 30 |
| Rotating Tool Speed | r/min | - | 5000 | 5000 |
