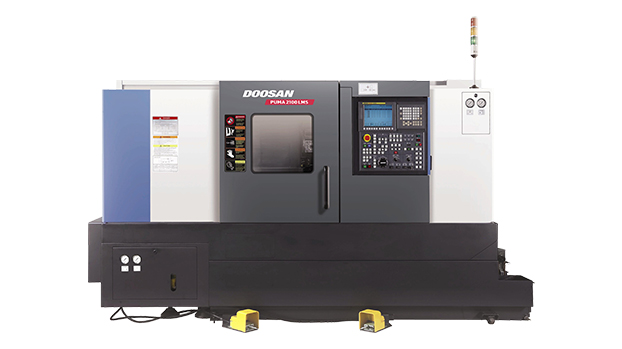

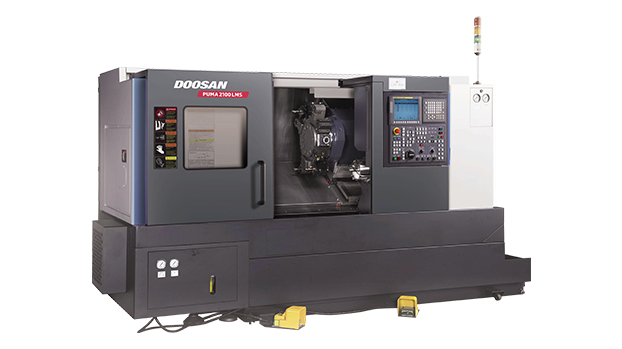

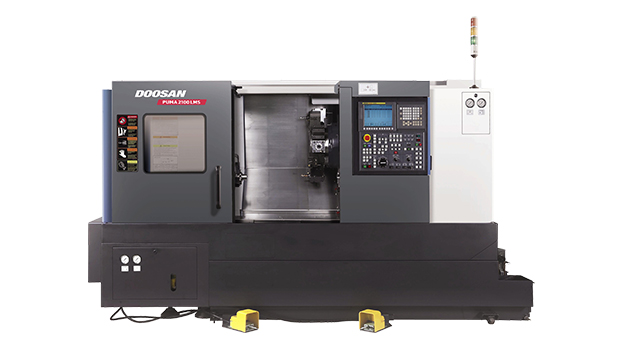

The PUMA 2100 series turning centers are designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. Available mill-drill capability and Y-axis with a programmable tail stock, greatly reduce the need for secondary operations, eliminating additional set-up and handling costs.
Main Features
- High speed spindle

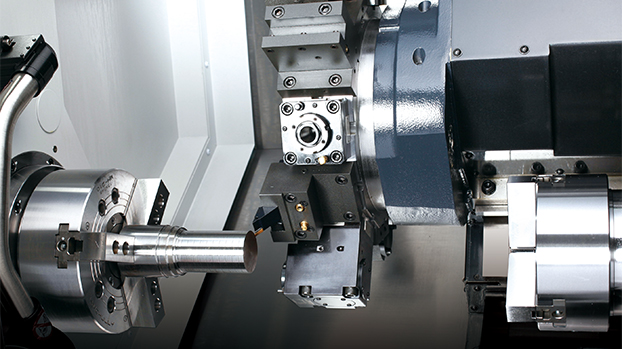

- Milling, drilling and tapping capabilities
- 3 standard rotating tool holders
- Tool monitoring system - ear and breakage detection
- One-piece 30¡Æ slant bed
- Solid box way construction
- Turcite B anti-friction mating way surfaces
- Programmable part catcher
- Tool Setter
- EZ Guide i conversational programming
Main Specifications
Sales Model | Unit | PUMA 2100 | Puma 2100M | Puma 2100Y |
---|---|---|---|---|
Max. Turning Diameter | mm (inch) | 480 (18.9) | 406 (15.98) | 406 (15.98) |
Max. Turning Length | mm (inch) | 520 (20.47) | 520 (20.47) | 520 (20.47) |
Draw Tube I.D. | mm (inch) | 68 (2.68) | 68 (2.68) | 68 (2.68) |
Spindle Speed | r/min | 45 - 4500 | 45 - 4500 | 45 - 4500 |
Travel Distance X-axis / X2-axis | mm (inch) | 260 (10.2) | 260 (10.2) | 260 (10.2) |
Travel Distance Z-axis / Z2-axis | mm (inch) | 590 (23.2) | 590 (23.2) | 590 (23.2) |
Rapid Traverse X-axis | m/min (IPM) | 16 (630) | 16 (630) | 16 (630) |
Rapid Traverse Z-axis | m/min (IPM) | 20 (790) | 20 (790) | 18 (710) |
Number of Tools std. (opt.) | Number of Tools | 12 | 12 | 12 |
Number of index positions | std. | 24 | 24 | 24 |
Turning Tool Shank Size | mm (inch) | 25 (1.0) | 25 (1.0) (.75 opt.) | 25 (1.0) (.75 opt.) |
Boring Bar Diameter main / sub | mm (inch) | 50 (2.0) | 40 (1.5) (1.25 opt.) | 40 (1.5) (1.25 opt.) |
Rapid Traverse C-axis | r/min | - | 400 | 400 |
Travel Distance Y-axis | mm (inch) | - | - | 105 (4.13) |
Rapid Traverse Y-axis | m/min (IPM) | - | - | 10 (394) |
Min. Porgrammable Angle C-axis | Deg. | - | 0.001 | 0.001 |
Angle of Slant Bed | Deg. | 30 | 30 | 30 |
Rotating Tool Speed | r/min | - | 50 - 5000 | 50 - 5000 |
