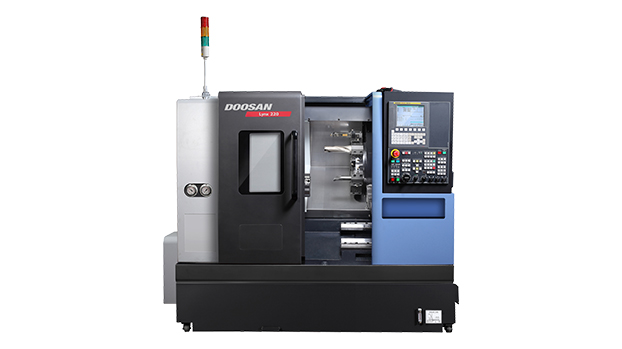

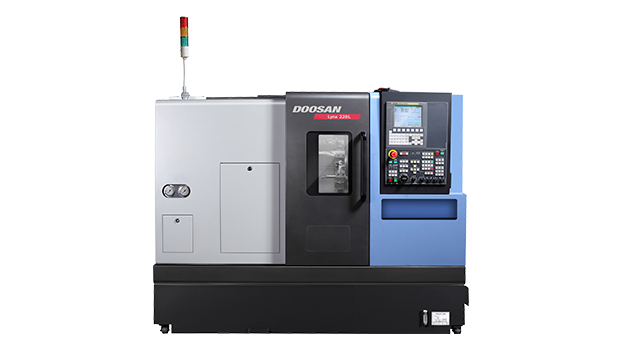

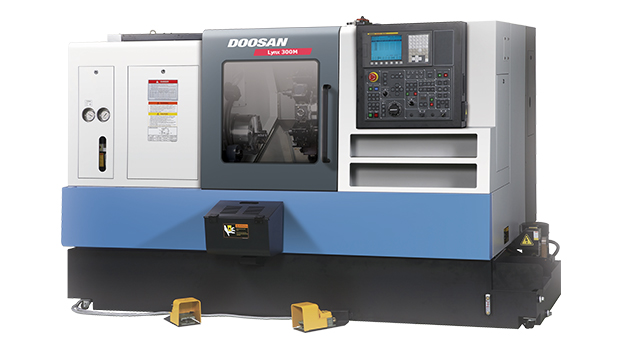

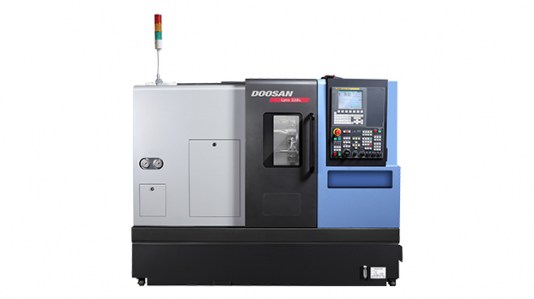

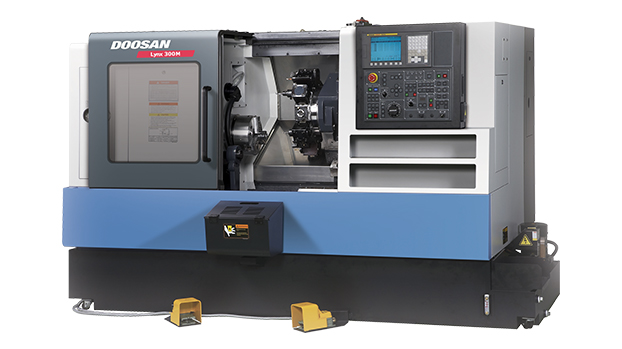

The Lynx turning centers are designed for long-term high accuracy and superior surface finishes. High-speed turret indexing and ultra fast rapid traverse rates minimize non-cutting time. Classic manufacturing methods and rigid construction are combined with advanced technological features to provide exceptional value1.
Main Features
- Large bar capacity
- Part catcher
- High speed spindle
- Curvic coupling
- Fast 0.15 second turret indexing
- One-piece Meehanite cast iron slant bed
- Pretensioned X axis ball screw
- Metered piston distributor lubrication
- Way lube separation system
- Electric torque limiters
Main Specifications
Sales Model | Unit | Lynx 220A | Lynx 220C | Lynx 220LC |
---|---|---|---|---|
Max. Turning Diameter | mm (inch) | 320 (12.6) | 320 (12.6) | 320 (12.6) |
Max. Turning Length | mm (inch) | 320 (12.6) | 305 (12.0) | 525 (20.7) |
Draw Tube I.D. | mm (inch) | 46 (1.81) | 68 (2.68) | 68 (2.68) |
Spindle Speed | r/min | 60 - 6000 | 45 - 4500 | 40 - 4000 |
Travel Distance X-axis / X2-axis | mm (inch) | 175 (6.9) | 175 (6.9) | 175 (6.9) |
Travel Distance Z-axis / Z2-axis | mm (inch) | 330 (13.0) | 330 (13.0) | 550 (21.6) |
Rapid Traverse X-axis | m/min (IPM) | 30 (1181) | 30 (1181) | 30 (1181) |
Rapid Traverse Z-axis | m/min (IPM) | 36 (1417) | 36 (1417) | 36 (1417) |
Number of Tools std. (opt.) | Number of Tools | 12 | 12 | 12 |
Turning Tool Shank Size | mm (inch) | 25 (1.0) | 25 (1.0) | 25 (1.0) |
Boring Bar Diameter main / sub | mm (inch) | 40 (1.5) | 40 (1.5) | 40 (1.5) |
