CNC Lathe with Milling Function

Puma TT(SY) Series

Print
Description

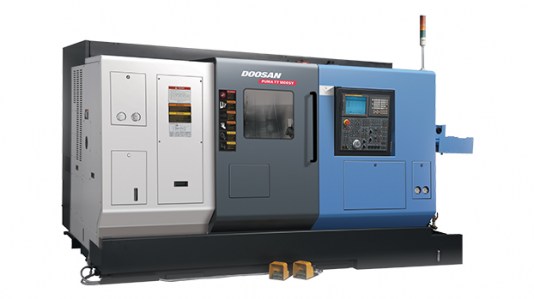

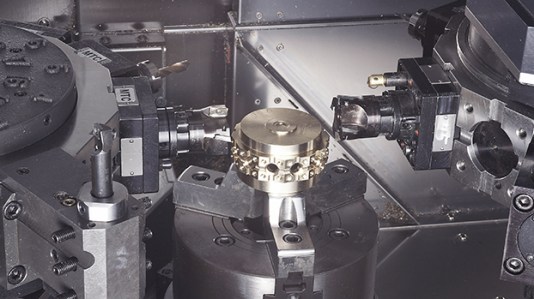

 The PUMA TT1500SY multi-task mill/turn centers are designed for long-term high accuracy, and superior surface finishes. High speed turret indexing and fast rapid traverse rates minimize non-cutting time. C-axis contouring and Y-axis off-center milling/drilling allow for single set-up and completion of highly complex workpieces. Same-size integral spindle motors on both spindles provide improved performance and flexibility. Multi-tasking capabilities increase productivity and provide for just-in-time production requirements by reducing lead time, changeover time, set-up time, and time between operations.

Main Features
- Two equal capacity high speed spindles
- Powerful high-horsepower integral spindle motors
- Milling, drilling and tapping capabilities
- Refrigerated temperature control system for both spindles
- Base mounted tooling (BMT) system
- Rigid tapping on left spindle, right spindle and rotatry tools
- Full contouring on both spindles - C-axis
- Automatic Tool Setter
- Right spindle body positioning by ball screw and servo motor
- Right spindle can be synchronized with left spindle

 Main Specifications

Sales Model Unit Puma TT1500S
Max. Turning Dia Uppr / Lwr mm (inch) 230 (9.05) / 230 (9.05)
Max. Turning Length mm (inch) 120 (4.72)
Distance between Spindle Nose - 750 (29.5)
Max. Bar Capacity mm (inch) 51 (2)
Spindle Speed L / R r/min 6000
Travel Distance X-axis Uppr / Lwr mm (inch) 165 (6.5) / 190 (7.48)
Travel Distance Z-axis Uppr / Lwr mm (inch) 470 (18.5) / 490 (19.29)
Travel Distance Y-axis mm (inch) 100 (3.93)
Rapid Traverse X-axis Uppr m/min (IPM) 20 (787)
Rapid Traverse Z-axis Uppr m/min (IPM) 40 (1574)
Rapid Traverse Y-axis m/min (IPM) 7.5 (295)
Rapid Traverse C-axis r/min 600
Number of Tools std. (opt.) 12+12
Turning Tool Shank Size mm (inch) 20 (.75)
Boring Bar Diameter mm (inch) 32 (1.25)
Rotating Tool Speed r/min 5000
