CNC Lathe with Milling Function
Puma SMX Series

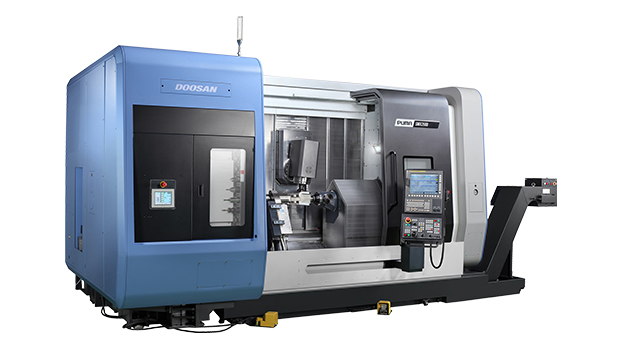

The PUMA SMX3100 multi-task milling/turning center, is designed for heavy and interrupted cutting, long-term high accuracy, and superior surface finishes. High speed tool change, combined with fast rapid traverse rates minimize non-cutting time. C-axis contouring, Y-axis off-center and B-axis any-angle milling/drilling allow for single set-up completion of highly complex workpieces. Multi-tasking capabilities increase productivity and provide for just-in-time production requirements by reducing lead time, changeover time, set-up time, and time between operations.
Main Features
Coming Soon
Main Specifications
| Sales Model | Unit | Puma SMX3100 |
|---|---|---|
| Max. Turning Diameter / Main | mm (inch) | 660 (25.98) |
| Max. Turning Length | mm (inch) | 1540 (60.63) |
| Max. Bar Capacity | mm (inch) | 81 (3.187) |
| Spindle Speed L / R | r/min | 3000 |
| Milling Spindle Speed | r/min | 12000 |
| Travel Distance X-axis Uppr / Lwr | mm (inch) | 630 (24.8) |
| Travel Distance Z-axis Uppr / Lwr | mm (inch) | 1585 (62.4) |
| Travel Distance Y-axis | mm (inch) | 300 (11.81) |
| Travel Distance B-axis | Deg. | 240 |
| Rapid Traverse X-axis Uppr | m/min (IPM) | 48 (1890) |
| Rapid Traverse Z-axis Uppr | m/min (IPM) | 48 (1890) |
| Rapid Traverse Y-axis | m/min (IPM) | 36 (1024) |
| Rapid Traverse C-axis | r/min | 200 |
| Number of Tools | std. (opt.) | 40 (80) |
