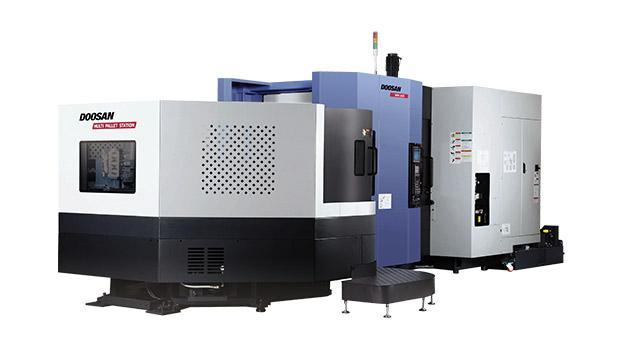

Compared to a standard twin pallet machine, the MPS offers a long period of unmanned operation and the flexibility to produce many different workpieces using the work scheduling function. This system can be easily retrofitted to existing machines in the field.
Main Features
- Compact design
- Easy retrofit and maintenance
- Eco-friendly design
- Servo driven carrier type
- Easy and Simple Scheduling through set-up station
- More efficient and faster Pallet change mechanism by using carrier system (less noisy)
Main Specifications
Sales Model | Unit | HC400II / HP4000II | HC500II | HP5100II |
---|---|---|---|---|
Pallet Dimension | mm (inch) | 400 x 400 | 500 x 500 | 500 x 500 |
Workpiece Diameter | mm (inch) | 600 | 800 | 800 |
Workpiece Height | mm (inch) | 800 | 900 | 930 |
Workpiece Weight | kg | 400 | 500 | 500 |
Magazine type | - | Buffer Station type with Carrier | Buffer Station type with Carrier | Buffer Station type with Carrier |
Operation | - | Easy scheduling operation (2-Path control) | Buffer Station type with Carrier | Buffer Station type with Carrier |
Pallet Drive Device | - | Servo Motor & Reduction Gear | Servo Motor & Reduction Gear | Servo Motor & Reduction Gear |
