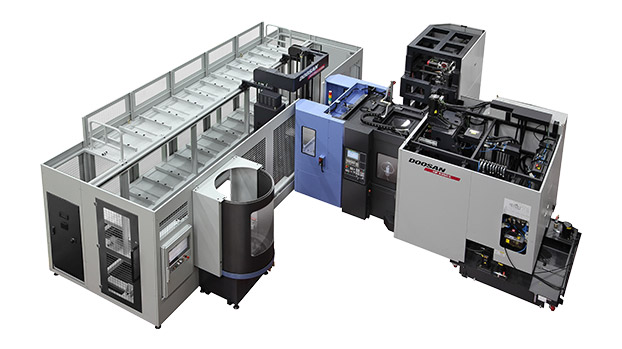

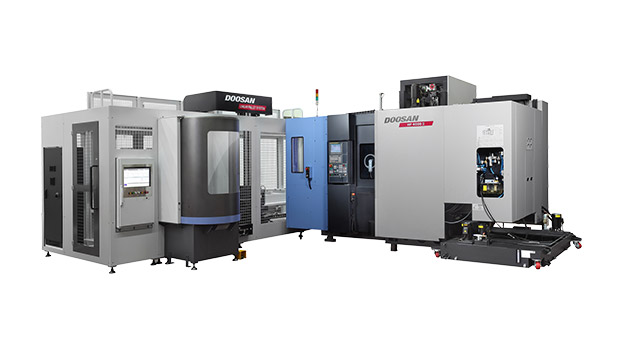

LPS is designed to provide optimized system for the user. Depend on user's output and workspace, user can choose proper package.
Maximum 2 Setup Station and 36 Pallet Storage Rack can be attatched to 3 Horizontal Machining Center.
Main Features
- Easily extendable up to 3 HMC.
- High efficiency of workpiece load space
- Fast install
- Easy extension of system by modulized storage rack
- Auto-operation control by PC based OS
- Consistent of LPS provided by package
- Clear and obvious system status display
- Easy retrofit to existing old model HMC
Main Specifications
Sales Model | Unit | HC400II / HP4000II | HC500II / HP5100II |
---|---|---|---|
Pallet Dimension | mm (inch) | 400 x 400 | 500 x 500 |
Workpiece Diameter | mm (inch) | 600 | 800 |
Workpiece Height | mm (inch) | 800 | 900 / 930 |
Workpiece Weight | kg | 400 | 500 |
Travelling(X) Speed | m/min | 60 | 60 |
Lifting(Y) Speed | m/min | 6 | 6 |
Forking(Z) Speed | m/min | 20 | 20 |
Axis Control | - | Servo | Servo |
Forking Type | - | Single Fork (Telescopic Mechanism) | Single Fork (Telescopic Mechanism) |
Power Supply (AGV) | - | Cable | Cable |
Number of Machines | - | 1 | 1 |
Number of Setup Stations | - | 1 | 1 |
Number of Pallet | - | 12 | 12 |
Dimension (Basic) | mm | 7190(L) x 2225(W) | 7190(L) x 2225(W) |
